GR Super T Serie

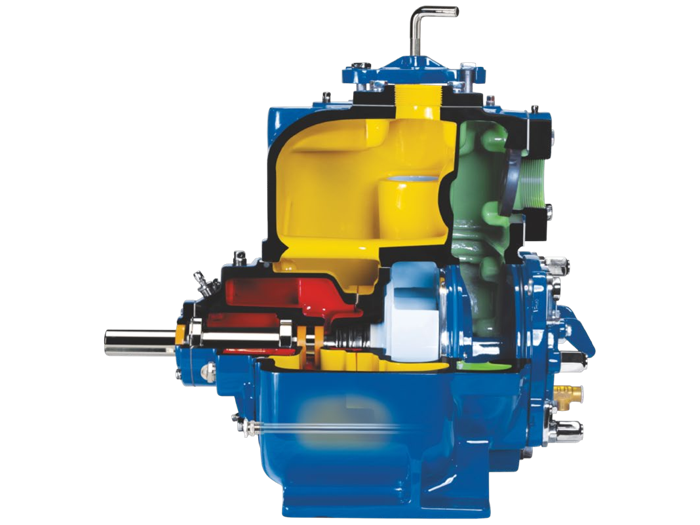

Designed for economical, trouble-free operation, the superior solids-handling capabilities of Super T Series® pumps make them ideally suited for a variety of applications including solids-laden liquids and slurries. The large volute design allows automatic repriming in a completely open system without the need for suction or discharge check valves.

Eradicator Solids Management System

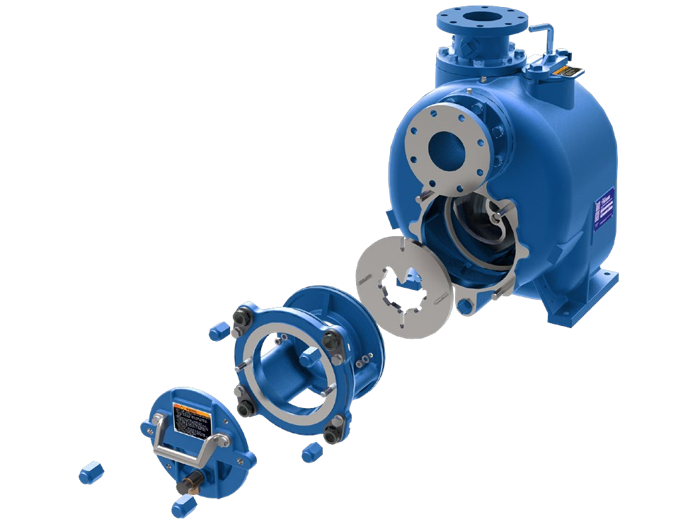

The Eradicator system features an aggressive self-cleaning wearplate incorporating a number of notches and grooves, as well as a patent-pending lacerating tooth, that helps break up stringy materials and pass them through the pump without impacting performance or interrupting service. A special back cover includes a patented lightweight inspection cover that can easily be removed if it is necessary to inspect the impeller. The innovative design greatly reduces troublesome clogging and expensive downtime.

Specifications

Size 80 mm, 100 mm, 150 mm, 200 mm, 250 mm
Max Capacity (Q) 215 lps
Max Head (H) 40 m
Max Solids (mm) 76 mm
Materials of Construction Cast Iron, CD4MCu, Ductile Iron, Stainless Steel
