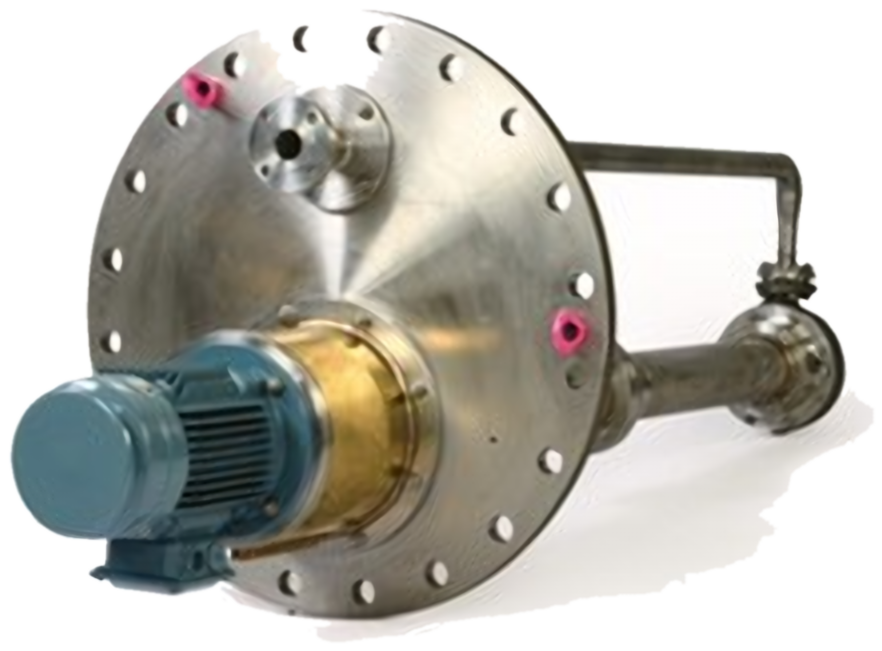

API610 VS4 sump pumps

bildeV Series pumps are designed to API610 10th edition specifications for the Petrochemical, Chemical and Oil & Gas markets. All API materials are available as standard to match your application, plus bespoke options including NACE compliant materials. Standard Documentation, Testing and NDT packs are offered. Alternatively bespoke packages can be tailored to fit your exact requirements.

bilde

General description
A range of vertical long shaft single stage centrifugal end suction sump pumps manufactured in a variety of alloys. VS4 API and industrial versions available. Designed to suit customer requirements with lengths available up to 6m sump depth.
Construction
Heavy duty modular design maximising flexibility to suit customer's application.
Design methodology
Advanced computer techniques including 3D modelling, FEA & CFD
Design standards
Design pressure rating
20 bar g @ 20°C
Operating temperature
-40°C to 100°C (pressure containing parts)
Design temperature
150°C (standard construction)
Performance envelope
Flowrate
Up to 500m³/h
Differential head
Up to 175m
Speed
Up to 3600 rpm
Configurations
Frame sizes
040x025x145 to 250x200x510
Design life
20 years (3 years uninterrupted operation)
