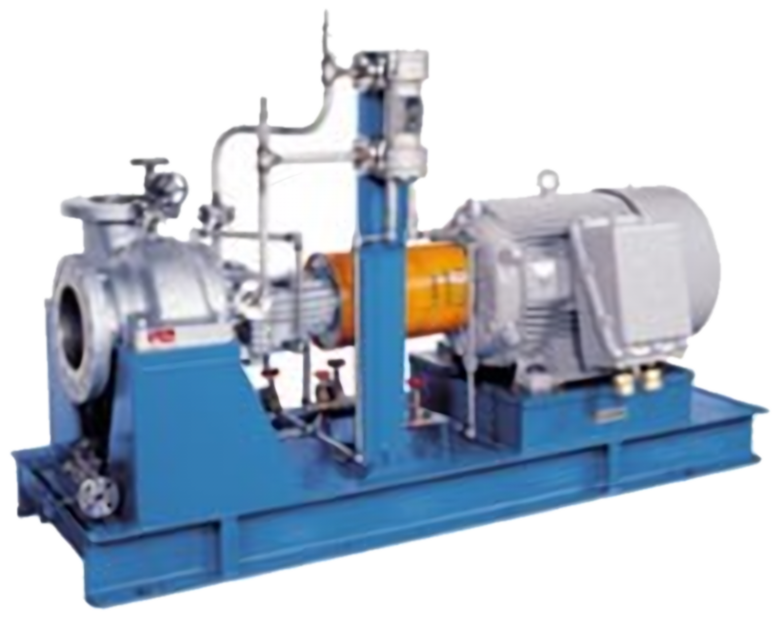

OH2 Single Stage Horizontal Pump

bilde

API 610 10th : 2004 / ISO13709

Our pumps are designed to API610 10th edition specifications specifically for the Petrochemical and Oil & Gas markets. These heavy-duty process pumps are horizontal, radially split and constructed to a modular design, making them easily adapted to match your site standard. All API materials are available as standard plus bespoke options (including NACE compliant materials) which are available on request. The pumps incorporate proprietary components from all the major manufacturers and unit lead times are very competitive. A full range of customer specific documentation, testing and NDT options are offered to compliment the product.

bilde

General description: OH2 single stage, centreline mounted centrifugal end suction pumps manufactured in a variety of alloys

Construction: Back pullout design

Design standards: API 610 10th : 2004 / ISO13709 : 2003 ATEX EC-Directive 94/9/EC

Suction pressure rating: Up to40 bar g (heavy duty construction)

Temperature rating: -40°C to 400°C (with cooling)

Flowrate: Up to 1000m³/h

Differential head: Up to 250m
